Description

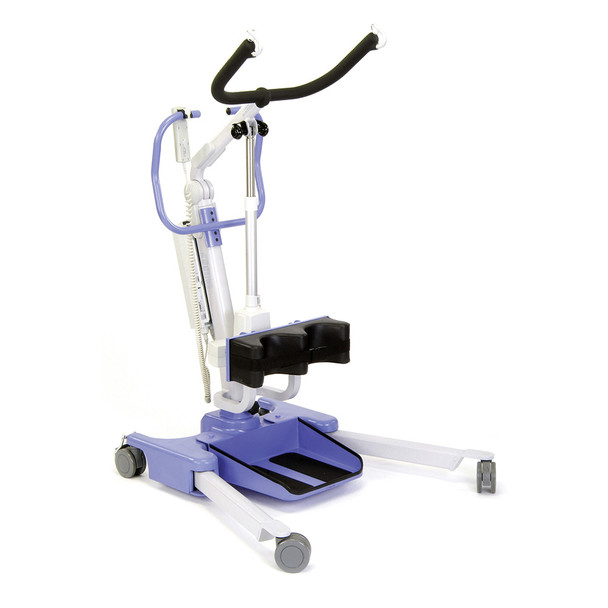

A premium stand assist hoist designed for safe and comfortable patient transfers. The Oxford Ascend Stand Aid Patient Lifter features a robust yet compact design, offering exceptional stability, manoeuvrability, and patient support. Ideal for home care, aged care, and medical facilities, it ensures effortless transfers while reducing strain on caregivers. Full technical support and servicing are available in major centers across Australia.
Features
Compact and manoeuvrable design allows for easy operation in tight spaces.
Adjustable knee pad provides enhanced comfort and stability during standing transitions.
Safe working load of 200kg supports a wide range of users.
Powered lifting mechanism ensures smooth and controlled patient transfers.
Ergonomic hand control simplifies operation with effortless adjustment.
Foot operated leg opening enables easy access around chairs and furniture.
Durable, rechargeable battery system ensures reliable performance with an emergency stop function.

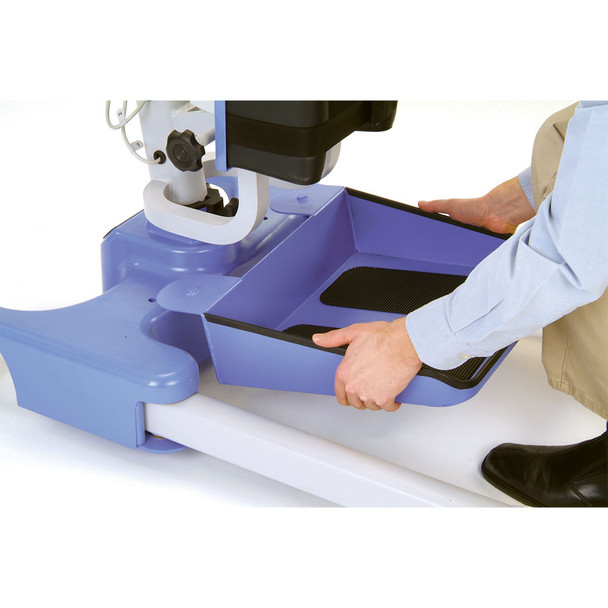

Non slip footplate provides additional security during transfers.
Specifications
Safe working load 200 kgs
Total Weight: 46.7 kgs
Maximum overall length 110cm
Minimum overall length 100cm
Maximum overall height 171cm
Minimum overall height 107cm
Overall Width 65cm
Maximum Height to Attachment Point 166.5cm
Minimum Height to Attachment Point 99cm
Turning radius 132cm
Legs open - External width 99.5cm
Legs open - Internal width 88.5cm
Legs closed - External width 63cm
Legs closed - Internal width 51cm
Overall height of legs 12cm
Ground Clearance: 3.5cm
Battery Type: 24V Rechargeable
Knee Pad Height Adjustment: 47 - 67cm
Delivery Information
Available for delivery in most locations Australia wide, physical street address required.
Product supplied assembled by a qualified technician
Folded shipping dimensions 100 x 69 x 45cm
Delivery Times (business days)
Adelaide 3-5 days
Urban NSW, QLD, ACT, and VIC 4-7 days
Rural NSW, QLD, ACT, VIC and SA 5-9 days
WA, TAS and NT 5-12 days
Oxford Ascend Stand Aid Patient Lifter Brochure - Download
Oxford Ascend Stand Aid Patient Lifter User Manual - Download
Warranty Information
Full 12 month warranty.
100% customer satisfaction guaranteed.
