Description

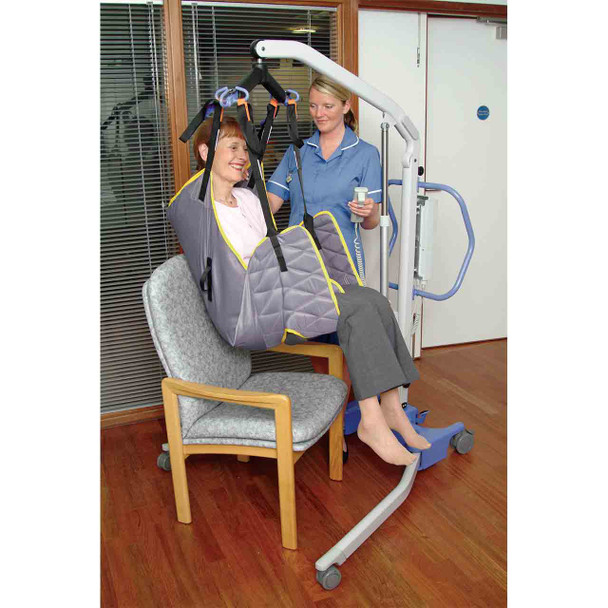

Oxford Advance Portable Patient Floor Hoist. A mobile patient lifter enabling safe transfers of a person to or from a seated or lying position, even from as low as off the floor. Compact folding design for storing or transporting. Full technical support and servicing available in major centres Australia wide.
Features
Exceptionally low spreader bar usable height, suitable even for lifting patient from off the floor.
Mobile patient lifter enabling a safe transfer of a person to or from a seated or lying position.
Generous sized push handles to enable easy manoeuvring.
User friendly, foot operated mechanism to adjust hoist legs, allows lifter to be positioned around furniture.
Unique design allows hoist to fold down compactly without the use of additional tools. Great for home care use and in care facilities where space may be limited.
Transportable to allow for travel outside the home or care environment.
Emergency lowering feature for optimal safety.
Intelligent diagnostic Smart Monitor to alert when service is due or safe working load is exceeded.
Specifications
Safe working load 155 kgs
Maximum overall length 130cm
Minimum overall length 125cm
Maximum overall height 186cm
Minimum overall height 136cm
Width 55cm
Height when folded 45cm
Depth when folded 118cm
Spreader bar maximum height 169cm
Spreader bar minimum usable height 39cm
Height at maximum reach 117cm
Reach at maximum height 65cm
Reach at minimum height 35cm
Maximum reach 83.5cm (from centre of spreader bar to front of mast)
Turning radius 142cm
Legs open - External width 108cm
Legs open - Internal width 100cm
Legs closed - External width 67cm
Legs closed - Internal width 57cm
Overall height of legs 11.5cm
Ground clearance 3cm
Front 3 inch twin castors (7.5cm)
Rear braked 3.9 inch castors (10cm)
Supplied with battery and onboard charger
Tested to EN ISO 10535
Delivery Information
Available for delivery in most locations Australia wide, physical street address required.
Product supplied assembled by a qualified technician
Folded shipping dimensions 145x111x65cm
Delivery Times (business days)
Adelaide 3-5 days
Urban NSW, QLD, ACT, and VIC 4-7 days
Rural NSW, QLD, ACT, VIC and SA 5-9 days
WA, TAS and NT 5-12 days
Click to view PDF of full features
Video Demonstration:
Warranty Information
Full 12 month warranty.
